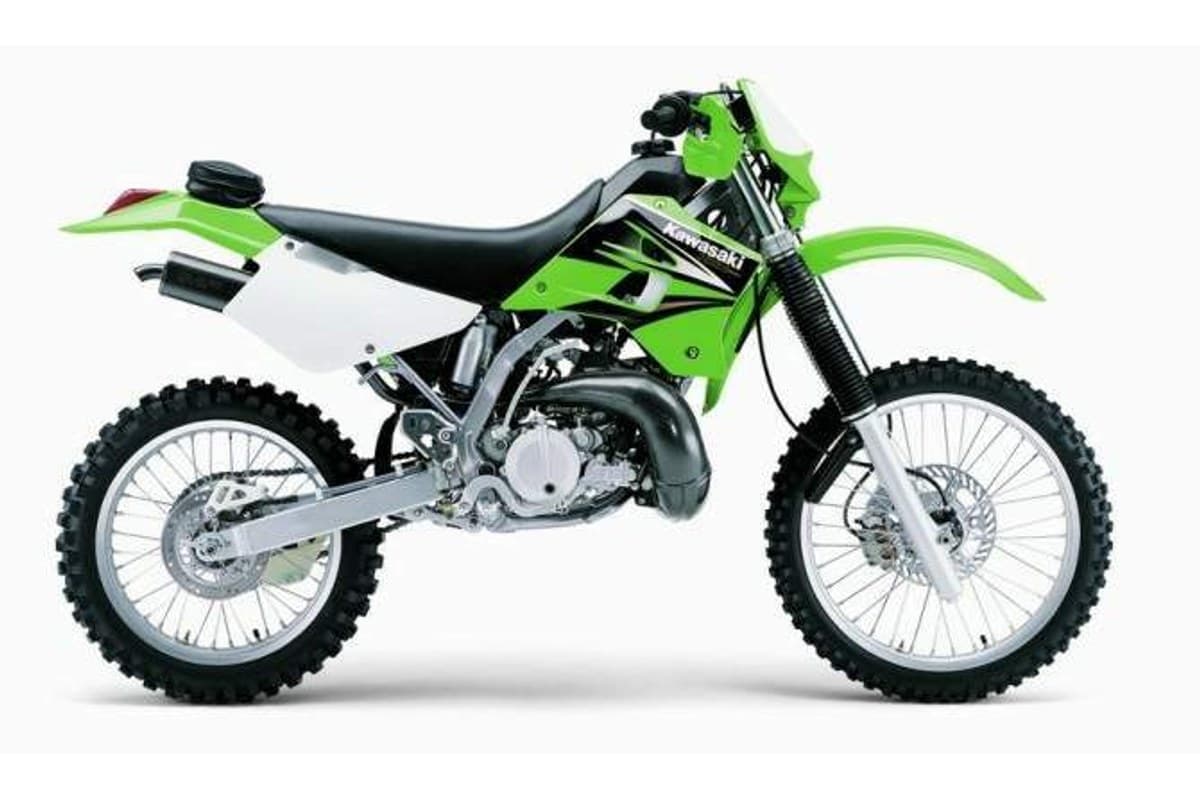

2005 Kawasaki KDX220R
—
| Price, class & resources | |
|---|---|
| MSRP | — |
| Class | Enduro |
| Website | — |
| Reviews | Motorcycle.com • MotorcycleDaily • Dirt Bike Roundup |
| Manual | — |
| Engine | |
| Type | Single-cylinder, liquid-cooled, 2-stroke, KIPS |
| Displacement | 216 cc |
| Bore × Stroke | 69 × 58 mm |
| Compression | 7.2:1 (low) / 9.3:1 (high) |
| Power | — |
| Torque | — |
| Fuel system | Keihin PWK33 carburetor, reed valve |
| Transmission | 6-speed |
| Clutch | — |
| Starter | Kick |
| Final drive | Chain |
| Oil change | — |
| Oil injected | No (premix) |
| Chassis | |
| Frame | Tubular steel perimeter |
| Front suspension | 43mm conventional cartridge fork |
| Front travel | 11.4" |
| Rear suspension | Uni-Trak single shock |
| Rear travel | 11.8" |
| Front brake | Single 250mm disc, 2-piston caliper |
| Rear brake | Single 220mm disc, 1-piston caliper |
| Front tire | 80/100-21 (21") |
| Rear tire | 100/100-18 (18") |
| Dimensions | |
| Wheelbase | 56.5" |
| Seat height | 36.2" |
| Ground clearance | 13.4" |
| Fuel capacity | 2.9 gal |
| Wet weight | 240 lb |
