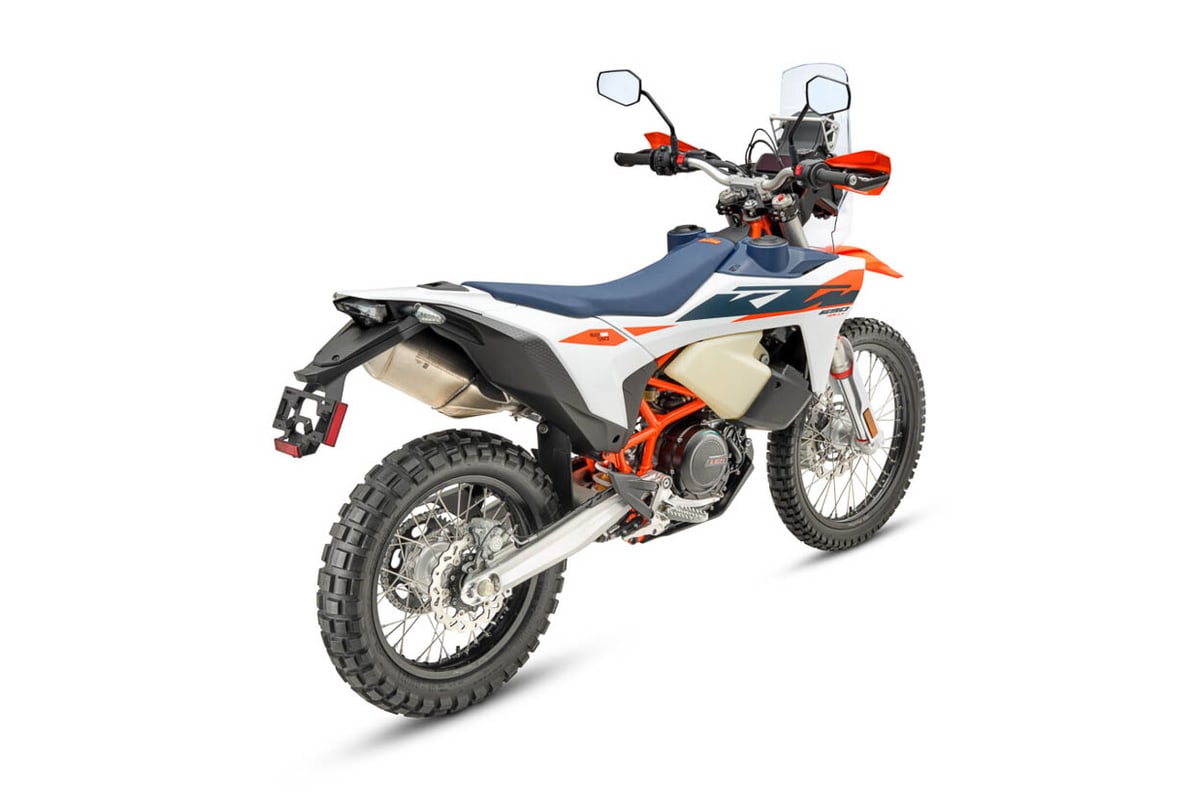

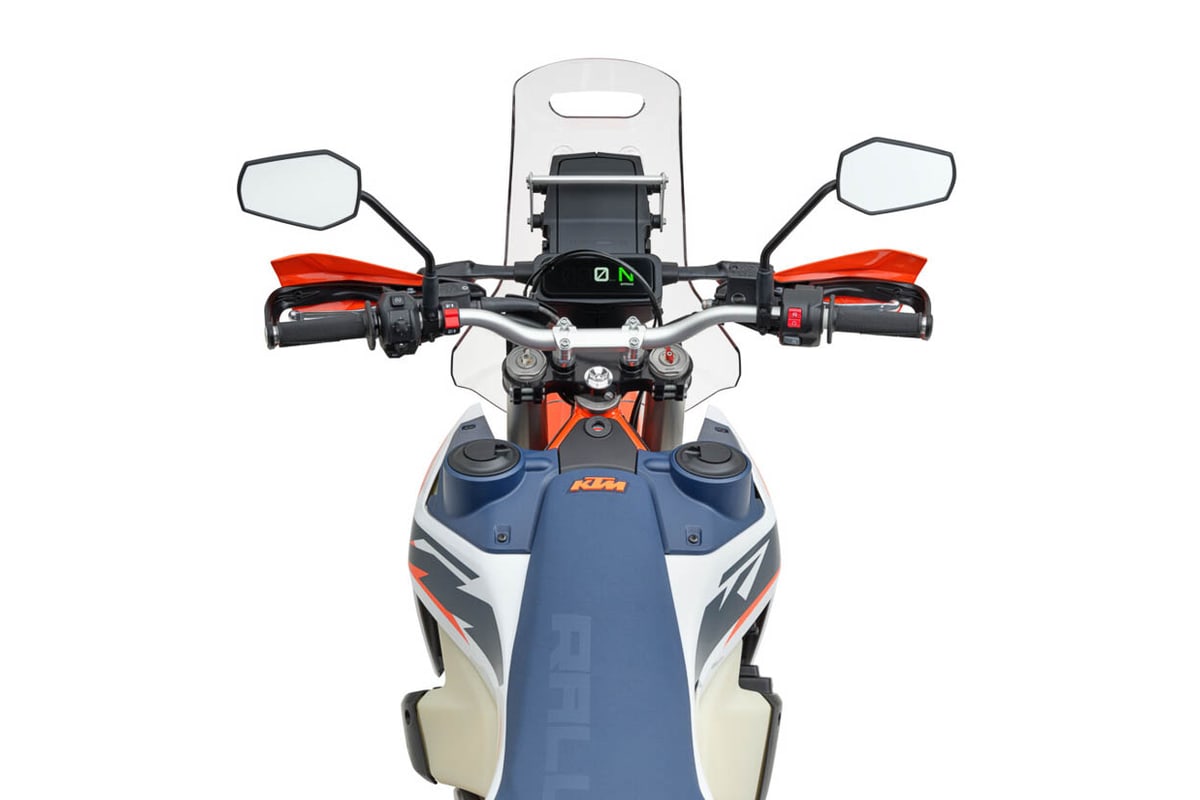

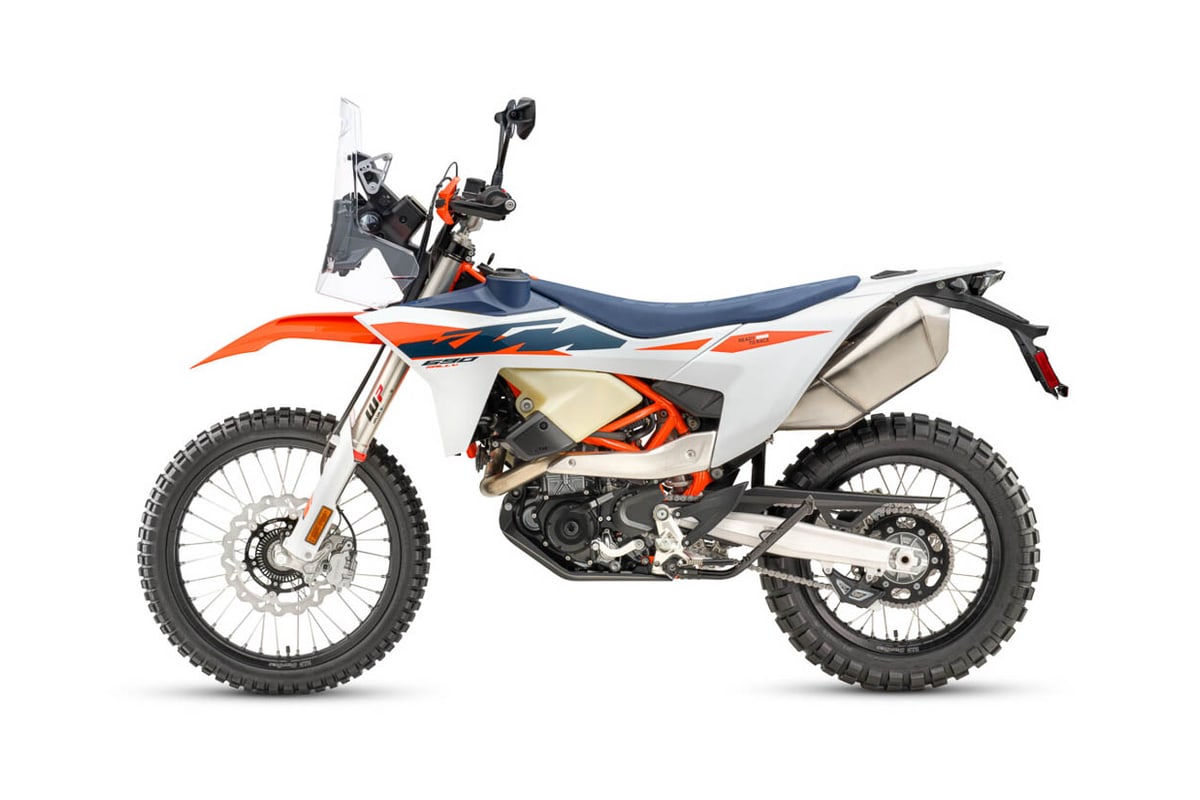

2027 KTM 690 Rally
$14,199
| Price, class & resources | |
|---|---|
| MSRP | $14,199 |
| Category | adventure |
| Sub-category | middleweight |
| Website | website |
| Reviews | ADV Pulse • Dirt Bike Magazine • Motorcycle News |
| Manual | |
| Engine | |
| Type | Single-cylinder, 4-stroke, liquid-cooled LC4 |
| Cylinders | Single |
| Displacement | 692.7 cc |
| Bore × Stroke | 105 × 80 mm |
| Compression | 12.7:1 |
| Power | 78 hp |
| Torque | 53.8 lb-ft |
| Fuel system | Keihin EMS with ride-by-wire, twin ignition |
| Transmission | 6-speed |
| Clutch | hydraulic |
| Final drive | Chain |
| Oil change | 9,320 mi |
| Chassis | |
| Frame | Chromium-molybdenum steel trellis, powder coated |
| Front suspension | 48mm WP XPLOR USD fork, compression and rebound adjustable |
| Front travel | 10.4" |
| Rear suspension | WP XPLOR shock with Pro-Lever linkage, fully adjustable |
| Rear travel | 9.8" |
| Front brake | Single 300mm disc, Brembo twin-piston floating caliper, cornering ABS |
| Rear brake | Single 240mm disc, Brembo single-piston floating caliper |
| Front tire | 90/90-21 (21") |
| Rear tire | 140/80-18 (18") |
| Dimensions | |
| Wheelbase | 59.3" |
| Seat height | 36.8" |
| Ground clearance | 10.4" |
| Fuel capacity | 5.57 gal |
| Wet weight | 389 lb |
| Features | |
| ABS | ✓ |
| Traction control | ✓ |
| Ride modes | ✓ |
| Cruise control | — |
| Quickshifter | optional |
| Heated grips | optional |
| TFT display | ✓ |
| Tubeless tires | — |
